Lifetime, Performance, Characterization & Mechanical Tests

Providing comprehensive testing throughout your development: from early electrical cell characterization to final mechanical and safety compliance.

Cell testing at highest standards

  • Molecule

    Large Test Capacity.

    Access over 1,200 channels optimized for everything from early stage research and development to commercial benchmarks.

  • Thermo

    State of the Art Cyclers.

    Precision channels from 1mA for small applications up to 1600A high-power channels for industrial energy storage.

  • Hardware

    Controlled Climate Conditions.

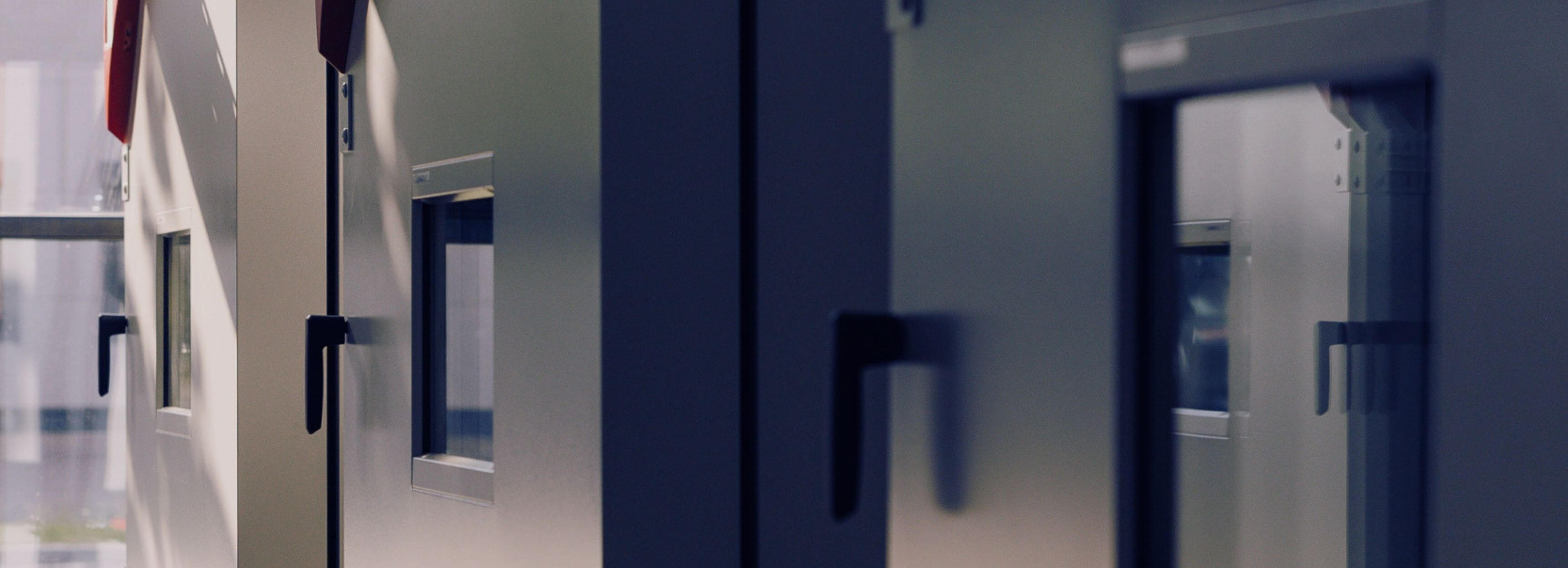

    Rely on high precision climate chambers simulating stable operational environments ranging from -40°C to +180°C.

Innovation is at the core of our testing

New test protocols, new hardware and advanced data analytics. We continuously drive innovation through…

Non-invasive plating tests

Our facility uses High Precision Coulometry to study cells and modules with highly stable current control. By revealing intricate degradation details, this methodology shortens

Battery breathing and swelling

Our facility uses High Precision Coulometry to study cells and modules with highly stable current control. By revealing intricate degradation details, this methodology shortens

HPC tests

Our facility uses High Precision Coulometry to study cells and modules with highly stable current control. By revealing intricate degradation details, this methodology shortens

Cell heartbeat

Our facility uses High Precision Coulometry to study cells and modules with highly stable current control. By revealing intricate degradation details, this methodology shortens

Predict, Optimize, and Scale Battery Performance

Our Solutions
Equivalent Circuit Model (ECM)High-Efficiency System Integration
Pseudo-Two-Dimensional Model (P2D)The Deep-Dive Physics Expert
Data-Driven Aging IntelligenceTransformer-Based Lifecycle Prediction

Mimics battery behavior using simplified electrical components to deliver real-time results without draining computational resources.

Cost & Fidelity: Ultra-low (Real-time) | Behavior-based.

Best For: BMS testing (HIL), real-time SoC/SoH tracking, and massive system-level pack simulations.

Discover More

Simulates internal electrochemical kinetics and lithium-ion transport to look inside the cell and analyze exact physical behaviors.

Cost & Fidelity: Moderate to High | Physics- & chemistry-based

Best For: Next-gen cell optimization, degradation diagnostics (SEI growth), and fast-charging safety limits.

Discover More

Uses transformer-based AI to process fleet data and physical parameters, predicting long-term battery degradation without heavy traditional solvers.

Cost & Fidelity: Efficient rapid inference | Data-driven with physical insight

Best For: Fleet-wide SoH/Remaining Useful Life forecasting, dynamic stress analysis, and 10-year lifespan extrapolation.

Discover More

UN38.3 Testing: What Makes Our Testing Services Different?

01
Quality

Our experienced engineers ensure that your cells and packs undergo electrical and mechanical safety testing so that they can be brought to market in compliance with the highest safety standards.

02
Agile Testing

While we provide full UN38.3 compliance certification, we also offer rapid individual testing for early prototype validation. Driven by lean internal workflows and direct engineer to engineer communication, your project moves through our lab with maximum speed and zero administrative delays.

03
Purpose Built Infrastructure

We deliberately optimize our equipment and processes for cells and small modules. This absolute focus guarantees state of the art, high precision testing environments and highly specialized handling tailored precisely to your component size.

Battery Validation and Pre-Compliance Testing

Battery validation can be performed as a single test for early-stage prototypes or as a full UN38.3 testing sequence. Stress assessments are carried out within a unified infrastructure, ensuring reliable and consistent results. We also offer targeted pre-testing to prepare your batteries for all common battery safety standards (IEC 62619, IEC 62133-2 etc.).

  • T.1 Altitude Simulation

    This test simulates air transport under low pressure conditions. The batteries are exposed to a low pressure of 11.6 kPa for at least 6 hours.The batteries are exposed to a low pressure of 11.6 kPa for at least 6 hours.

  • T.2 Thermal Test

    This test assesses battery seal integrity and internal electrical connections. The test is conducted using rapid and extreme temperature changes. The test object undergoes 10 cycles between -40 °C and +72 °C.

  • T.3 Vibration

    The batteries are subjected to sinusoidal vibrations for 9 hours to simulate the mechanical stress during transport.

  • T.4 Shock

    The batteries are subjected to a total of 18 mechanical shock pulses of 150G along three axes to simulate sudden impact loads.

  • T.5 External Short Circuit

    At an ambient temperature of 57 °C, a low impedance external short circuit of less than 0.1 Ohm is induced to verify safety during electrical faults.

  • T.6 Impact and Crush

    The battery is mechanically deformed either by a defined mass impact or hydraulic pressing force to evaluate the reaction to severe physical damage.

  • T.7 Overcharge

    The battery is charged for 24 hours at twice the rated current to evaluate its reaction to a charger malfunction.

  • T.8 Forced Discharge

    A battery is artificially deeply discharged to simulate the behavior during forced polarity reversal within a battery assembly.

Precision Testing,
Audit-Ready-Compliance

Technical Validation & High-Resolution Telemetry

Our validation stations support cells, packs, and modules. They provide full raw telemetry, including voltage curves, current profiles, and multi-point thermal mapping, for comprehensive performance evaluation and verification. High measurement resolution enables the precise capturing of critical cell behaviors, such as separator collapse, internal shorts, vent activation behavior, and battery management system response characteristics.

Regulatory & Audit-Ready Documentation

Each validation sequence generates serialized, audit-ready documentation aligned with international transport and safety standards. Reports include complete test traceability, data from calibrated instrumentation, and comprehensive test reports suitable for certification bodies and supply chain audits.

We are here to make your development faster

Schedule a call
